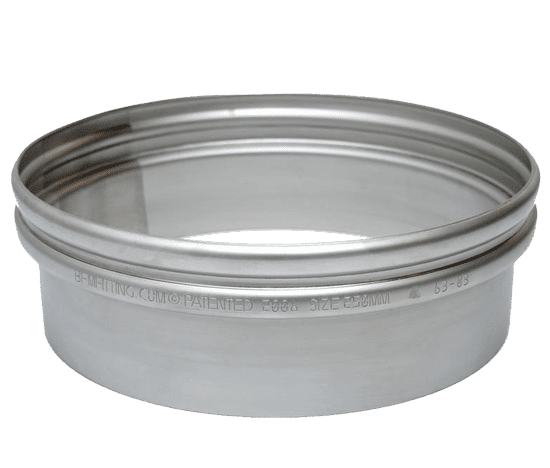

ARL BFM® fitting 316SS Spigots

BFM fittings are transforming manufacturing around the world! A revolutionary, snap-in, flexible connector and spigot system that eliminates the problems associated with traditional hose clamp systems.

BFM^® spigots are manufactured out of 304 and 316 stainless steel in a range of standard sizes from 100 mm (4 in) up to 1,650 mm (65 in) in 50 mm (2 in) increments that can accommodate virtually any process environment. Additionally, for special applications, C22 Hastelloy is available from 100 mm (4 in) to 500 mm (20 in) in 50 mm (2 in) increments.

• The spigot design incorporates a slight taper allowing the unit to be trimmed to an exact fit for any existing pipe or installation.
• BFM^® spigots have a 52 mm (2 in) tail that can be cut back to suit existing pipework.
• Spigots for Tool Release installations require a 6 mm (15/64″) hole in the top rim of the spigot. Pre-drilled spigots are available for purchase with your TR Connectors.
• Jacob flanges are available that allow the spigots to be installed or removed in seconds without tools. For more heavy duty applications we can provide 150# flanges or ferrule ends for sanitary applications.
